Ambari Code Layout

Ambari is a Maven multi-module project. The repository separates the server, agent, shared libraries, Web applications, Views, and contribution modules so each build and ownership boundary remains explicit.

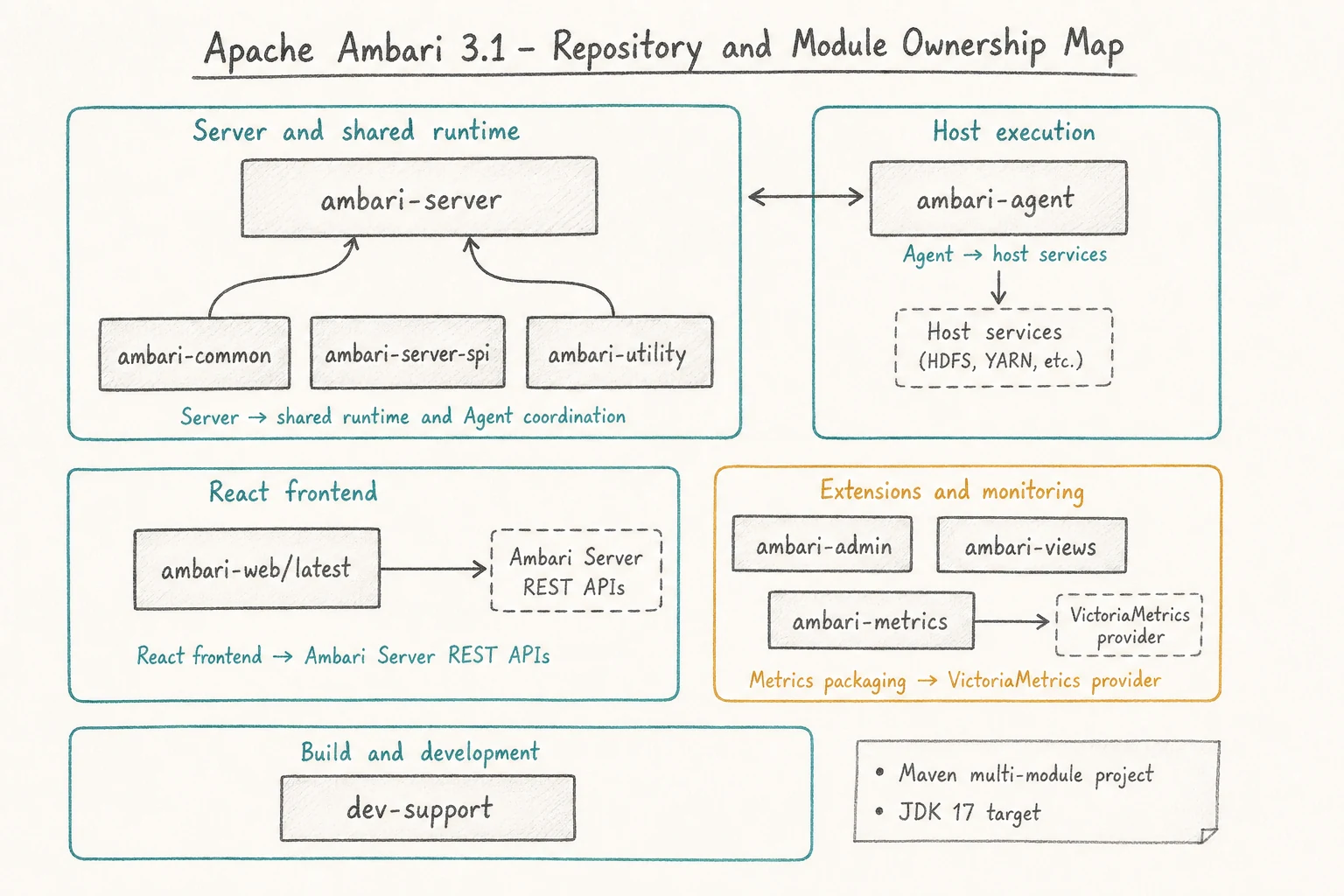

The map groups modules by responsibility; arrows show runtime collaboration or packaging relationships rather than Maven's complete dependency graph.

Top-Level Modules

ambari/
  ambari-agent/
  ambari-common/
  ambari-project/
  ambari-server/
  ambari-server-spi/
  ambari-utility/
  ambari-views/
  ambari-web/
  ambari-admin/
  contrib/
  docs/

Module	Purpose
ambari-server	Server APIs, orchestration, persistence, stack processing, and Python server utilities.
ambari-agent	Agent runtime, command execution, registration, caches, security, and Python packaging.
ambari-common, ambari-server-spi, ambari-utility	Shared APIs and implementation utilities.
ambari-web	Primary Ambari Web application. latest contains the React/TypeScript/Vite UI; classic is the historical bundle.
ambari-admin	Separate Ambari Admin Web application, with its React build under src/main/resources/ui/ambari-admin.
ambari-views	View framework interfaces, server integration, examples, and package contracts.
contrib	Optional integrations and maintained third-party contributions.
docs	Project, architecture, API, and release documentation.

Java Build

The root Maven build targets JDK 17. ambari-project/pom.xml centralizes managed dependency versions, plugin versions, test settings, and supported module properties. Module POMs inherit those choices; do not introduce an unmanaged version when an existing property or dependency-management entry applies.

The server and shared Java modules use standard Maven source and test layouts. Server REST resources, state, controllers, DAOs, entities, upgrade catalogs, and tests are under ambari-server/src/main and ambari-server/src/test.

Agent And Python

Agent Python sources and tests live under ambari-agent/src/main/python and ambari-agent/src/test/python. The agent pyproject.toml, lock files, and Maven packaging define the supported interpreter, dependencies, wheels, and artifact boundary. Server-side Python utilities follow the corresponding module packaging and test configuration.

React Applications

The primary UI is under ambari-web/latest/src, with route objects in src/router, API clients in src/api, shared state in src/store, and user workflows under src/screens. Its package.json uses Vite, TypeScript, React 19, and Vitest. The separate Admin React application is built and packaged by ambari-admin; it is not a second root inside ambari-web/latest.

Views remain server-hosted extensions. The React shell discovers authorized View instances and opens their server-provided same-origin contexts; View application code belongs in the View package, not in the primary UI module.
